Matching Processing Plugin Parameters and Triggers

The result of matching may change when data changes. Updates result in events and matching allows for the generation / updating of match code values, as well as the option to run matching algorithms, whenever an event is processed on the objects acted on by the algorithm.

Deleted objects (objects in the recycle bin) are ignored during processing.

The Parameters and Event Triggers sections below contain important information on settings that should be considered when creating an event processor using this processing plugin.

Prerequisites

This section of documentation describes configuration steps for this specific processor, but that is only one part of configuring an event processor. For the full set of instructions on configuring an event processor, refer to the Event Processors topic.

The configuration requires selection of a matching algorithm, and that match codes are only updated for objects acted on by the algorithm and only when events are passed for those objects. For details about match codes and matching algorithms, refer to Matching, Linking, and Merging Elements in the Matching, Linking, and Merging documentation.

Important: The 'Run Matching Algorithm' functionality is controlled by System Setup > Action Sets > Setup Actions > Maintain Deduplication Configurations.

Parameters

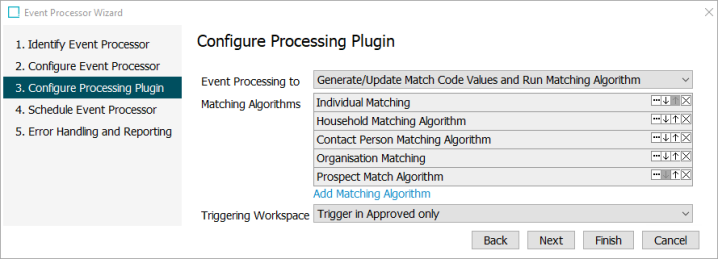

Each of the relevant parameters for the Event Processor Wizard 'Configure Processing Plugin' step are described below. Any additional wizard parameters with importance for this plugin are also included in this topic.

To access the 'Configure Processing Plugin' parameters as shown below, the Matching processing plugin must be selected within the Select Processor parameter during the wizard step 'Configure Event Processor.'

Once the Matching processing plugin has been selected, click the Next button, and the wizard step 'Configure Processing Plugin' displays.

• Event Processing to: Select an option from the dropdown.

• Run Matching Algorithm Only: runs the selected algorithm(s) using the existing match codes.

• Generate / Update Match Code Values Only: creates missing match codes, deletes invalid match codes, but does not run the algorithm(s).

• Generate / Update Match Code Values and Run Matching Algorithm: this is the recommended option and does both of the first two options. If configured to generate / update match code values, only objects included in the matching algorithms specified on this step are affected.

• Matching Algorithms: Specify which matching algorithm(s) to run by clicking the Add Matching Algorithm link and use search or browse.

• When multiple algorithms are selected, they are processed in order, from top to bottom.

• When working in a golden record scenario, consider the order of algorithms when there are references between multiple golden records within multiple matching algorithms. Common setup is to match 'reference targets' before 'reference sources' to ensure optimal matching performance, and as complete an initial construction of golden records as possible.

Important: While it is possible to use the same Matching Algorithm across Event Processors, this scenario will usually result in an optimistic locking and/or unique constraint violation when the two processors conflict with one another. Optimistic locking is the implementation where objects are modified concurrently. The result of this is that the system cannot know which value should be represented. To avoid these issues, ensure that each algorithm on the system is run by a single Event Processor.

• Triggering Workspace: Set the triggering workspace based on your implementation.

  Important: Use 'Trigger in Main only' or 'Trigger in both Main and Approved' option if checking for duplicated data while matching products before approval. This can lead to poor performance particularly if you are triggering on a high volume of data changes. Since the benefits of triggering from 'Main' can outweigh the performance risk, thoroughly test in lower environments before running in production. Alternatively, derived events can be used to trigger events prior to approval, as defined in the Derived Events topic of the System Setup documentation.

  • For entities, this option only has effect for workspace revisable object types.

  • For products:

    • 'Trigger in Approved only' is the recommended option.

    • 'Trigger in Main only' can be used if your use case requires searching for duplicates prior to approval.

    • 'Trigger in both Main and Approved' is available if necessary and the benefit is greater than the performance impact.

  Note: To activate a change to the Triggering Workspace parameter, you must invoke the event processor with at least one event on the queue.

  The selection made in the wizard is displayed in the Event Processor Configuration tab.



On the Schedule Event Processor step, select the desired schedule. The recommendation is every one (1) minute.

Note: The comparison run by a Matching event processor happens asynchronous to the actual import, leaving up to a minute between importing a record that should go into the clerical review workflow and making the record visible in the clerical review workflow.

Event Triggers

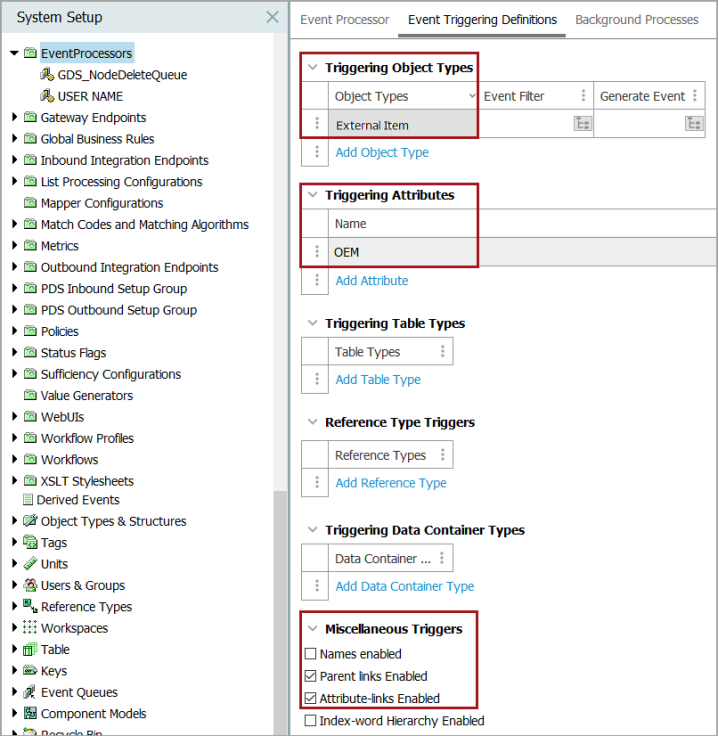

On the event processor's Event Triggering Definitions tab, use the Triggering Object Types, Triggering Attributes, and Miscellaneous Triggers flippers to configure the event processor to listen for changes on anything that the match code or matching algorithm needs to perform.

• If the event processor will update match code values, expand the Triggering Attributes flipper and click the Add Attribute link to select the attributes used by the Match Code definition.

• If the event processor will run a matching algorithm, select the respective object types, attributes, and links that are specified by the Matching Algorithm within the Global Binds or the Match Criteria flippers. These can include attribute values, IDs, names, attribute references, and parent links.

For a match and merge scenario, based on the selected algorithm, for existing golden records, the event processor performs a merge or initiates a clerical review. Add triggers for the following:

• references defined by your Matching component model: Non-Duplicate Reference Types. For details, refer to the topic Configuring Matching Component Model

• references defined by your Matching - Merge Golden Record References component model: Unmerged-From Relation Reference Types. For details, refer to the topic Configuring the Matching - Merge Golden Record Component Model.

• attributes, references, and data containers included in your Match Criteria. For details, refer to the Match Criteria topic.

Important: For accurate match and merge functionality, the event processor must trigger on updates that can change the outcome of the record comparisons. To accomplish this, the recommendation is to trigger on any attribute, reference, or data container that is used in the match criteria.

For a match and merge scenario, avoid triggers on the following attributes and reference types as defined by your component models:

• Potential Duplicate Reference Type

• Merged-Into Relation Reference Types

• Source Relation Reference Type

• Potential Duplicate Match Algorithm ID Attribute

• Source Record ID Attribute

• Deactivated Attribute

Triggering Workspace Flipper

This flipper is displayed in rare cases, specifically, only if either the 'Main' or the 'Main and Approved' option was previously selected in a release where the option was available.

Although changing the selection to the default 'Approved' radio button removes the flipper from the event processor, the setting can be observed from the Event Processor Wizard on the Configure Processing Plugin step, as defined, and further explained in the Parameters section above.

Note: To activate a change to the Triggering Workspace parameter, you must invoke the event processor with at least one event on the queue.

When configuration is complete, enable the matching event processor. For detailed steps, refer to the Enabling Event Processors section of the Running an Event Processor topic in the System Setup documentation.

Matching Recommendations and Retry Logic for Match Recommendation Service Connectivity

The matching processing plugin has a built-in retry logic when connecting to the cloud environment through a matching agent to get merge / reject recommendations for a clerical review task list. For more information, refer to the Machine Learning Match Recommendations topic in the Matching, Linking, and Merging documentation.

Troubleshooting

The following logs and statistics provide information for troubleshooting the event process.

• Review the event processor background process log to determine when events were processed and what actions were taken in response.

• Review event processor performance measurements on the Statistics tab for both matching algorithms and match code configurations.
