The IDoc MATMAS 05 format is XML-based and is used when exchanging information with SAP. For more information, search the web.
Format Availability
IDoc MATMAS 05 is available for selection in:
-
IIEP - refer to Creating an Inbound Integration Endpoint here
-
Import Manager - refer to Creating a Data Import here
-
Export Manager - refer to Creating a Data Export here
-
OIEP - refer to Creating an Outbound Integration Endpoint here
Mapping
This format requires creating a data map between STEP and the data being processed, and may also include data transformations. For details, refer to Data Mapping here.
Inbound Data
After importing the required SAP attributes into STEP, then use a source sample file from the SAP system to import values for the products. Mapping is required to identify where the values will live in STEP, and may also include data transformations.
Inbound Parameters
The following parameters are available in both Import Manager and IIEP.
-

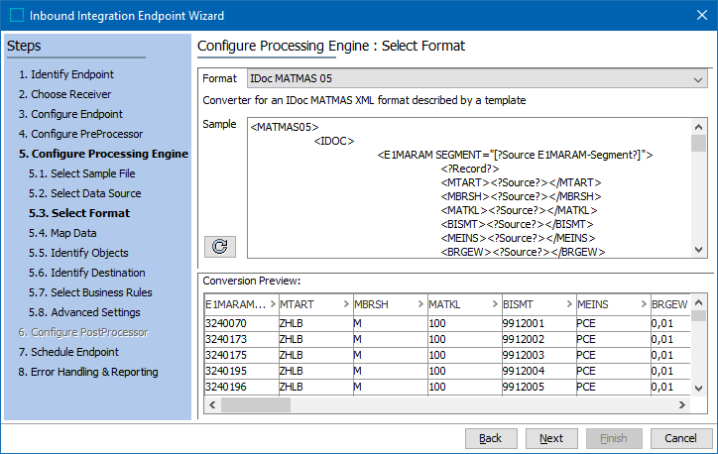

Sample - displays an import template based on the file selected on the Data Source step of the import wizard.
-
Conversion Preview - displays values from the sample file in columns.
Import Manager
IIEP
Outbound Data
Mapping is required to identify where the values live in STEP, and may also include data transformations.
Outbound Parameters
The following parameters are available in both Export Manager and OIEP.
-
Sample - displays the standard template for export. This template may be modified to exclude attributes not required by your system. Since no undo functionality is available in the Sample field, it is good practice to use an external XML editor program for creating and editing a template. To test a template's validity for output, paste the XML into STEP.
-
DocType - not valid for IDoc MATMAS 05 format
Export Manager
OIEP
