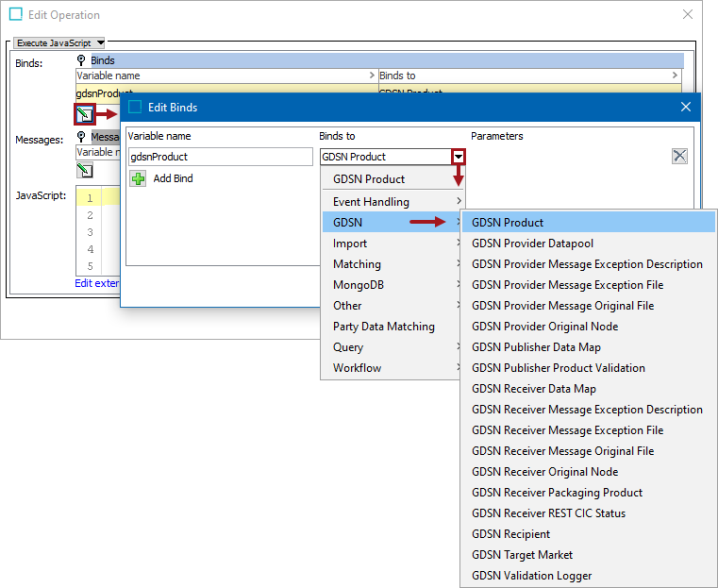

GDSN Binds

Binds the selected GDSN product for use in the Pre action business action parameter or in the validation conditions.

Binds the selected GDSN provider datapool for use in the Pre action business action parameter or in the validation conditions.

In JavaScript business actions, this binds the GDSN Message Exception description which is stored in the background process.

For JavaScript business actions, this bind will provide the GDSN Message Exception file.

This bind will provide the original outbound message file.

This bind will provide the node (the product) that was send to GDSN. Used when configuring GDSN failure message handling.

For a business action used by the GDSN Provider, this bind can get the value of a specific XPath. The XPath value can subsequently be used to retrieve the corresponding string in the GDSN XML file.

Deprecated. Provides access to information about a product instance that is registered for a given data pool.

For example, this could be used to write a script that can validate if all required attributes for a given data receiver have been populated on a given product.

For a business action used by the GDSN Receiver, this bind can get the value of a specific XPath. The XPath value can subsequently be used to retrieve the corresponding string in the GDSN XML file.

In JavaScript business actions, this binds the GDSN Message Exception description which is stored in the background process.

For JavaScript business actions, this bind will provide the GDSN Message Exception file.

This bind will provide the original outbound message file.

This bind will provide the node (the product) that was send to GDSN. Used when configuring GDSN failure message handling.

The bind will return the current product as a GDSN Receiver packaging member node. This makes it possible to set various CIC related information on the products in a java script.

The bind is used as a parameter when executing the business actions configured through the Setup Entities. The business actions configured are used to communicate the CIC status that is to be sent to the GDSN datapool.

For more information, refer to the CIC handling section of the GDSN Trade Item Implementation Guide, which can be found on the GS1 website.

The binding exposes the following methods:

String getCICStatus()

Get the status value for a CIC object. Valid values are:

• SYNCHRONISED

• REVIEW

• RECEIVED

• REJECTED

Example of use:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
   var operation = mdmStatus.getCICStatus().toString();
    switch (operation){
        case "SYNCHRONISED":
            customerLib.doMdmToGdsnAccept(node, manager, logger, mdmStatus);
            break;
        case "REJECTED":
            customerLib.doMdmToGdsnReject(node, manager, logger, mdmStatus);
            break;
        case "REVIEW":
            customerLib.doMdmToGdsnCorrect(node, manager, logger, mdmStatus);
            break;
        default:
            customerLib.doMdmToGdsnIgnore(node, manager, logger, mdmStatus);
    }

Map<String, List<String>> corrections()

Get the map of corrections code and list of descriptions for the review command.

Note: The map is read only, so changes will not be taken into account.

Example of use:

1
2
3
4
5
6
7
8
9
10
11
12
13
    var corrections = mdmStatus.corrections().keySet();
    var iterator = corrections.iterator();
    while (iterator.hasNext()){
        var correction = iterator.next();
        var correctiveDescription = mdmStatus.corrections().get(correction);
        var review = node.setCICReviewInformation()
            .withStatusCode(statusCode)
            .withStatusCodeDescription(statusDescription);
        .withAdditionalStatusLongDescription(statusLongDescription);
            .withCorrectiveActionCode(correction);
            .withExpectedCorrectiveInformation(correctiveDescription);
        review.apply();
     }

Binds the selected GDSN recipient for use in the Pre action business action parameter or in the validation conditions.

Binds the selected GDSN target market for use in the Pre action business action parameter or in the validation conditions.
