Product overrides are alternate versions of products and product families that may have differing values, references, links, and structures. Attributes and values applied to the product family are inherited to the product override and can be replaced with local values and references on the product override. Product overrides allow product objects to exist in multiple locations in the product hierarchy and are the primary building blocks for many print product presentations. A product override allows for the creation of 'pseudo' product families that are flexible to ever-changing print presentations. They can be thought of as a workaround for when an existing product family does not contain the exact products needed for a publication layout and/or its accompanying STEP table(s).
A product override folder can include products from various "standard" (e.g., non-override) product families. Similarly, a product override leaf object can live under a different product folder (override or standard) than the folder in which its corresponding standard object resides.
1. Tree Structure: For clarity, it is recommended to house product overrides in a separate sub-hierarchy from standard products.
2. Override Interface: The product override object makes it possible to override the children, attributes, and references of a product / product family. This is useful in order to publish a limited version of a product family without modifying the object itself.
Example
In this example a product family Ski Jacket Pro has three products. A product override 104061 is created and based on the product family Ski Jacket Pro. Attributes, values, and references are inherited from the product family Ski Jacket Pro to the product override folder and can be replaced with local values and references on the product override.
Two products from the product family Ski Jacket Pro are linked into the product override folder (SKU 00001 and SKU 00002). The product override only contains a subset of the products included in the original product family Ski Jacket Pro, as SKU 00003 is not included.
Important: Values and references inherited to a product override will not be inherited to products linked into the product override. These products will have their values inherited from their original structure instead.

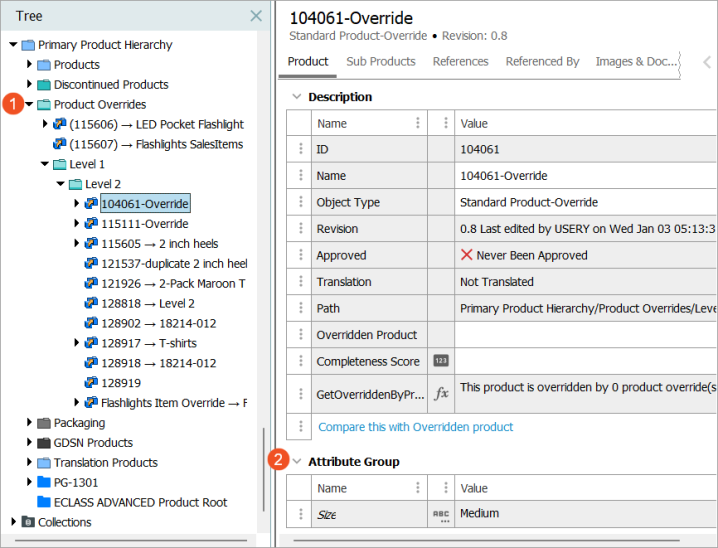

Selecting the Product tab or References tab on the product-override will indicate with a yellow icon (
), if an attribute or reference is inherited from an overridden product. Inherited values and references can be replaced with local versions, assuming the relevant attribute and/or reference is valid on the relevant product override object type.
Creating a Product Override
- In Tree, select an object for which an override should be created.
- Right-Click and select New Product-Override
- In the Create Product-Override dialog,
- Click an Object Type
- Key in ID and Name
- Optional: Click the ellipsis button (
) to select a product family to adapt values, references, and links from. The product-override will inherit all values, references, and links from the selected product family. - Optional: Click 'Adopt Children' if the product-override should also include all products from the overridden product family.
- Press Create to create the product-override.
Linking Products into a Product Override
- In Tree, select the product override
- Right-click the product override and select Add Children to Override
- Search or Browse for the products to be linked into the product override
Removing Products from the Product Override
- In Tree, select the product override
- Expand the product override and select the product to be removed
- Right-click and select Remove Child from Override
Creating a Subordinate Product Override
- In Tree, select the product override
- Select a product linked into the product override
- Right-click the product and click Convert to Product-Override
The product will be converted into a product override. Values, references, and links will get inherited from the overridden product.
