Advanced Search: Advanced Options

Additional Advanced Search options for narrowing results are available within the Advanced section.

Each of the Advanced options is described below.

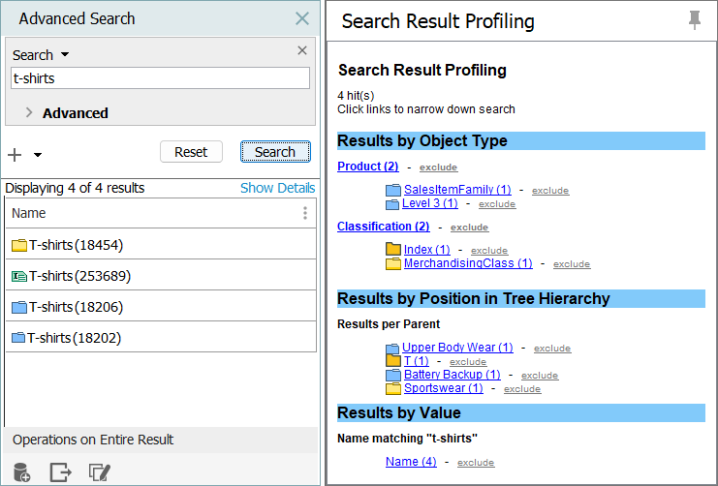

1. Match Case on Names and Values - When selected, Name and Attribute value searches are not case sensitive. For example, this is a basic search with search criteria of 'Search = T-Shirt.'



   The search results are displayed with all the objects in STEP that match the search criteria, in this case 'T-shirt.'

   STEP objects in the search result can include:

   • Classification / Asset / Product / Entity objects

   • Special Types objects

   • System Setup Tab objects



   Now, on the search, select the Advanced option 'Match Case on Names and Values.'

   With this option selected, the search result will only include attribute values and all the object names in STEP that match the search criteria in the correct case. Since the previous search results were all a different case, this search will return no results.



   Note: ID searches are always case sensitive.

2. Include Inherited Values -When selected, attribute value search results will show objects where the match includes inherited values as well as objects where the match includes locally defined values.

   Attribute values with hierarchical inheritance (values with green triangle) will only be included in the search result when Include Inherited Values option is selected.


   Dimension dependent Attributes – Specification or Description attribute values inheriting from other contexts (values with a red triangle) will also be displayed in the search result even when the user does not select the option Include Inherited values.




3. Exclude Values - When selected, attribute values are not searched for the entered search term. If unchecked, attribute values are searched for the entered term and objects with the search term populated as an attribute value are included in the search results.

   The Exclude Values in advanced search are useful for excluding objects which are having search content as a value in it. For example, assume there are attributes which has value 'Red' in few objects and there are objects which has Object Name/ID as 'Red.'

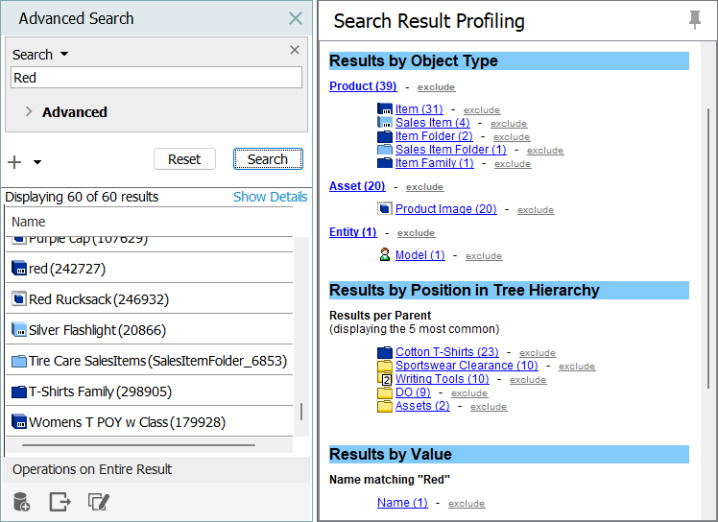

   If a typical search is performed, the results for 'Red' are shown below.



   If the same search is performed but with 'Exclude Values' selected under Advanced, only attribute IDs and Names matching the search are turned.



4. Regular Expression - When selected, attribute values are searched using the regular expression entered in the Search text box. Although establishing an attribute with Validation Base Type of Regular Expression allows more than 2000 characters (for example, [A-Z]{1,3000}), searching via a Regular Expression only returns results for matches within the first 2000 characters. For more information, refer to the Regular Expression topic in the Resource Materials online help documentation.

5. Include Data Containers - Include any search terms contained inside data containers.
