Mapping for Nestable Data Paths in Generic XML Example

  1. Map ID and Name for Level 1.

  1. Map Data Path to Accessory, click the Add Step link, select the Reference step type, and click OK.

  1. On the Data Path dialog, click the ellipsis button (), select AccessoryRequired reference type, and click the Select button.

  1. Click the Add Step link, select Reference Target for Accessory and click OK.

  1. Click OK to confirm the Reference and Reference Target Data Path fields for the Accessory.

  1. Open the 'AccessoryRequired'/Target/ section to display the nested mapping options. Map ID and Name for the Level 2 products being exported.

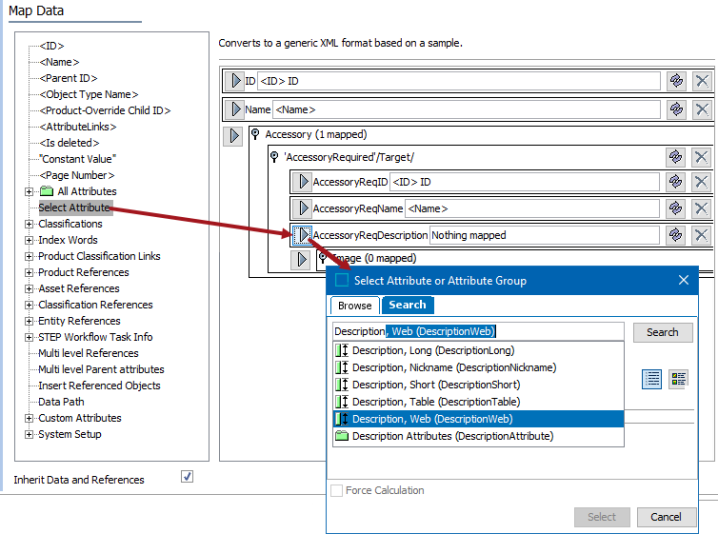

  1. Use Select Attribute to map 'Description, Web' for Level 2 (products) and click the Select button.

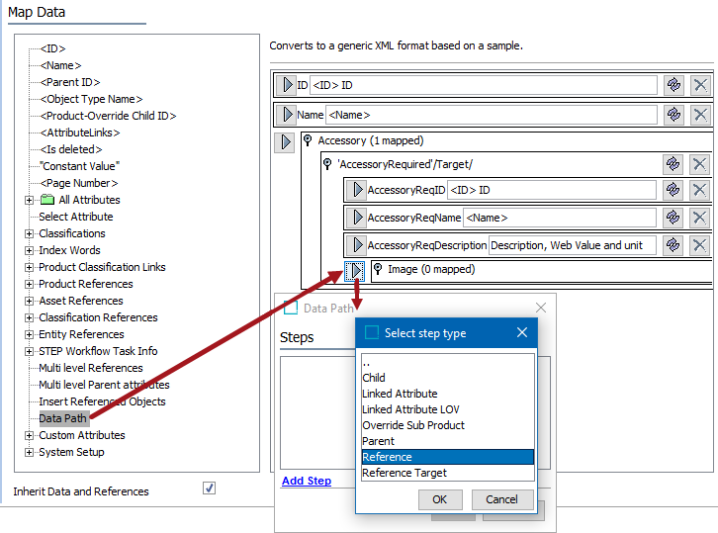

  1. Map Data Path to Image, click the Add Step link, select the Reference step type, and click OK.

  1. On the Data Path dialog, click the ellipsis button (), select ProductImage reference type, and click the Select button.

  1. Click the Add Step link, select Reference Target for Image and click OK.

  1. Click OK to confirm the Reference and Reference Target for the Image.

  1. Open the 'ProductImage'/Target/ section to display the nested mapping options. Map ID and Name for Level 3 (images).

All mapping is complete.
