Mapping Attribute Links, LOVs, and LOV Values in Generic XML

The Attribute Links and LOVs Processing Instructions in Generic XML (here) section discusses additional setup for a Generic XML or IDoc MATMAS 05 export. Use the following steps to map the Product, linked attributes, and their LOV information.

1. Map ID and Name for the Product.

2. Map Data Path to attribute.

3. Click the Add Step link and select Linked Attribute.

4. Click OK to close the Select step type and Data Path dialogs.
5. Open the LinkAttribute/ section and map Attribute ID and Name.

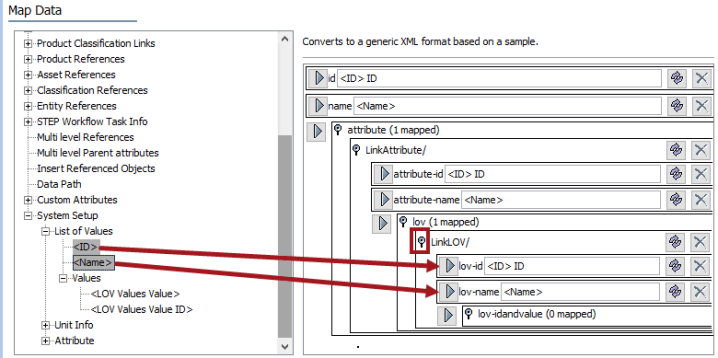

6. Map Data Path to lov, click Add Step and select Linked Attribute LOV.

7. Click OK to close the Select step type and Data Path dialogs.
8. Open the LinkLOV/ section and map Attribute ID and Name.

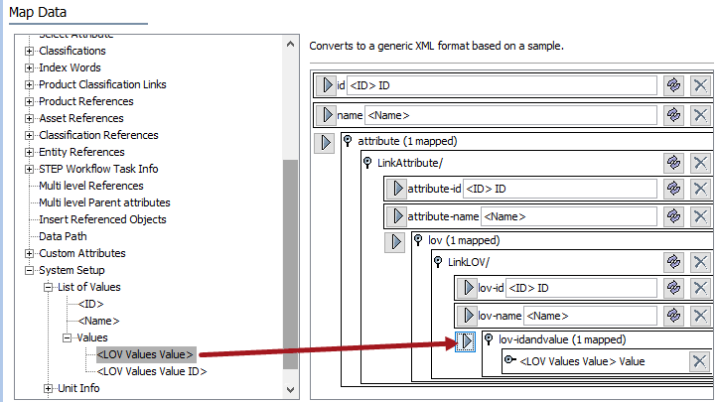

9. Map LOV Values Value to lov-idandvalue.

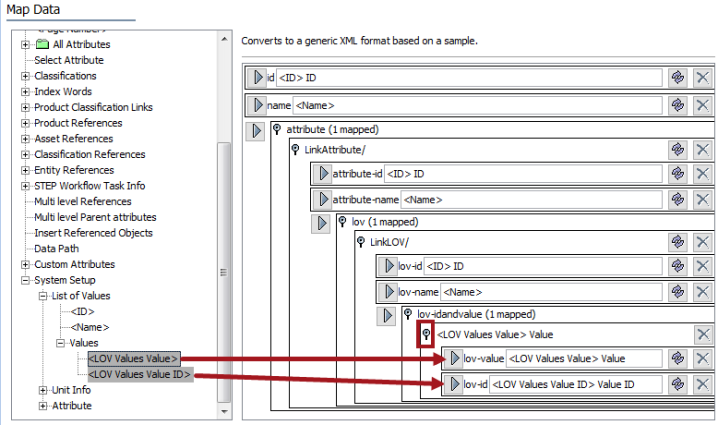

10. Open the <LOV Values Value> Value section and map LOV Values Value and LOV Values ID.
